Fiberglass Mesh Reinforced Polyester Mat with high strength for waterproof bituminous membrane

Share to:

Fiberglass Mesh Reinforced Polyester Mat with high strength for waterproof bituminous membrane

Used as frame material for waterproof membrane, pipe insulation, paving

unit weight:	120g/m2 130g/m2 150g/m2 customization
Availability:

Quantity:



Inquire Add to Basket

Brand:
NJEFG

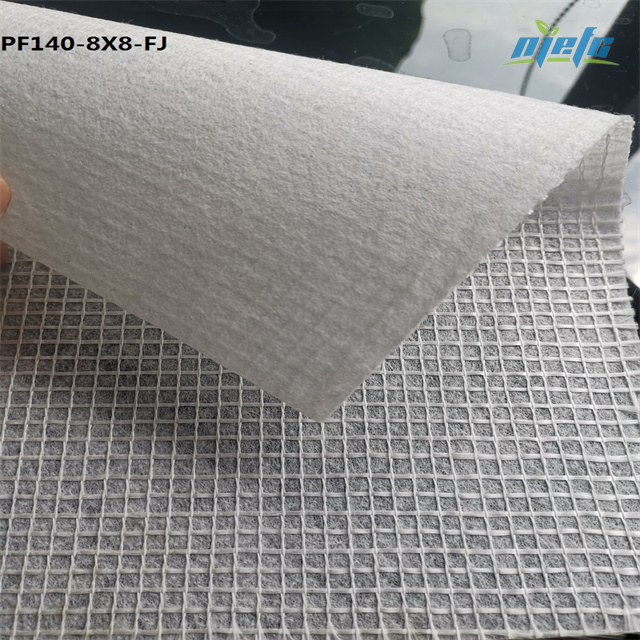

Fiberglass mesh reinforced polyester mat is polyester mat reinforced by fiberglass scrim. This mat is mainly used as excellent substrate material for APP or SBS modified bitumen membrane, oil pipe wrapping material, geotextile material, reinforcement of sports floors, reinforcement and waterproofing of high-ways, airport runways, etc. The fiberglass mesh reinforced polyester mat features high tensile strength, high tear strength, corrosion resistance and easy soakage by bitumen. The tensile strength of the fiberglass mesh reinforced polyester mat is adjustable by changing the mesh size of all yarns to meet different requirements.

【Characteristic】

High tensile strength and tear strength, high temperature resistance
Aging resistance, extends the life of waterproofing bitumen membrane and road.
Easy application.
Low cost

fiberglass mesh reinforced polyester mat

Thickness 4mm Sbs Construction Bitumen Waterproof Membrane

reinforced polyester mat bitumen membrane 3

Item No.	Unit	PF120-4X4-FB	PF120-5X5-FB	PF130-6X6-FB	PF150-7X7-FJ
Area Weight	g/m2	120	120	130	150
Width	mm	1000	1000	1000	1000
Length	m	1250	1250	1200	1100
Tensile Strength MD	N/5CM	300	400	450	500
Tensile Strength CD	N/5CM	100	200	250	450
Roll Diameter	mm	770	770	770	770
Core Diameter	mm	76	76	76	76
Moisture	%	<2.5	<2.5	<2.5	<2.5

Remark: Other specifications can be customized as per customer’s demand.

【Customization】

Fiberglass mesh reinforced polyester mat in above table are the standard types Nanjing EFG CO., LTD is delivering to overseas customers, if customer wants composite material in specific unit weight, tensile strength, roll width and roll length, Nanjing EFG CO., LTD can produce reinforced mat as per customer’s requirement, offer tailored service to customers from different countries.

【Packaging】

1. Roll packaging: PE plastic film

2. Pallet is available as per customer’s requirement and pallet is free of fumigation, fumigation certificate is available

【Storage】

This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in intact package when not used to avoid damp.

【Loading】Standard export loading

【Markets】

Nanjing EFG CO., LTD. has delivered mesh reinforced polyester mat to USA, EU, Middle East, North Africa, South Africa, Asian customers with ensured quality and have rich experience for export delivery. Nanjing EFG CO., LTD welcomes cooperation from all of the world.

【Delivery】

Mesh reinforced polyester mat is loaded in factory warehouse into container, then delivered to the sea port, finally be shipped to Customer’s port by MSK, MSC, CMA, COSCO, YANGMING, APL, etc.

【Payment】

LC, T/T, CAD, PAYPAL, WESTERN UNION, ETC.

【After sales service】

Nanjing EFG CO., LTD tracks cargo of every shipment till customer uses the composite mat, and offer any help for customer’s demand in any time.

【Technical support】

If customer meets any problem about technic, Nanjing EFG CO., LTD will supply relative knowledge to help customer find the best solution, and can send technician to customer’s factory for guiding if necessary.
