Fiberglass Mesh Reinforced Polyester Mat

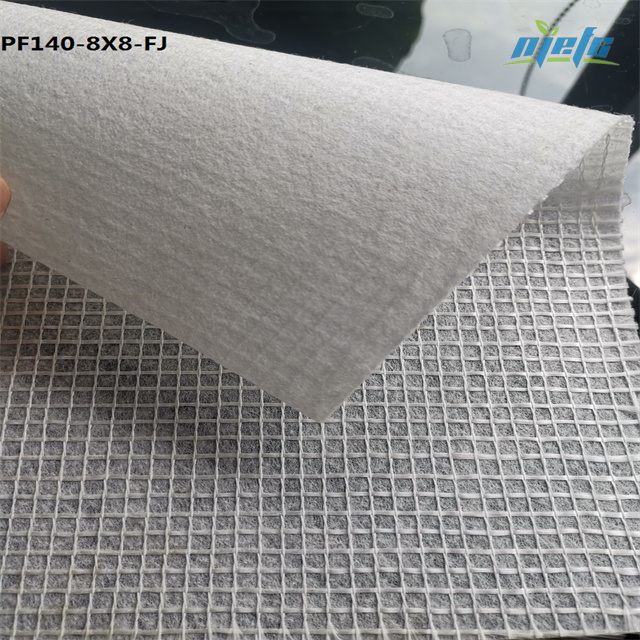

Fiberglass mesh reinforced polyester mat is polyester mat reinforced with fiberglass mesh.
Availability:
Quantity:
  • NJEFG

Thickness 4mm Sbs Construction Bitumen Waterproof Membrane

  Fiberglass mesh reinforced polyester mat is polyester mat reinforced with fiberglass mesh. This composite mat is mainly used as excellent substrate material for APP or SBS modified bitumen membrane, oil pipe wrapping material, geotextile material, reinforcement of sports floors, reinforcement and waterproofing of high-ways, airport runways, etc.

 The fiberglass mesh reinforced polyester mat features high tensile strength, high tear strength, corrosion resistance and easy soakage by bitumen. The tensile strength of the fiberglass mesh reinforced polyester mat is adjustable by changing the mesh size of all yarns to meet different requirements.



 High tensile strength and tear strength, high temperature resistance

 Aging resistance, extends the life of waterproofing bitumen membrane and road.

 Easy application.

 Low cost.


Code

Unit

PF120-4X4-FB

PF120-5X5-FB

PF130-6X6-FB

PF150-7X7-FJ

Area Weight

g/m2

120

120

130

150

Tensile Strength MD

N/5CM

300

400

450

500

Tensile Strength CD

N/5CM

100

200

250

450

Moisture

%

<2.5

<2.5

<2.5

<2.5

Roll width

mm

1000

1000

1000

1000

Roll length

m

1250

1250

1200

1100

Roll Diameter

mm

770

770

770

770

Core Diameter

mm

76

76

76

76

Loading quantity

rolls/40’HQ

115

115

115

115

Remark: 1. Other specifications can be customized according to customer’s demand.

               2. The technical data above is for reference only


This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in intact package when not used to avoid damp.
