NJEFG

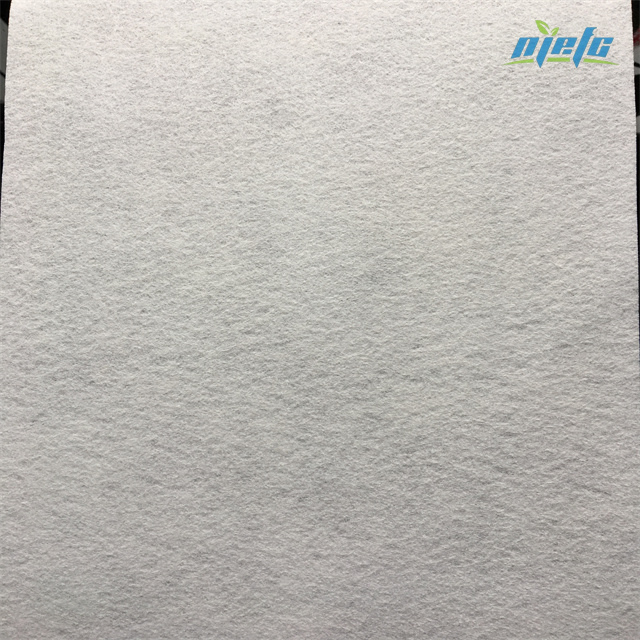

Polyester staple fiber mats are produced from polyester staple fibers, not continuous filaments. Polyester is a great waterproof material and this mat also has good tensile strength and good elongation. Polyester staple fiber mat takes effect after being soaked in bitumen; it is used in many fields, such as waterproof bitumen membrane,
Underground engineering, bridge surface, water tank waterproofing and building foundation anticorrosion materials.
【Characteristics】
High tensile strength and very good elongation
Good penetration by bitumen
Anti-corrosion
Anti-aging
User and environment friendly.
Polyester staple fiber mats are produced from polyester staple fibers, not continuous filaments. Polyester is a great waterproof material and this mat also has good tensile strength and good elongation. Polyester staple fiber mat takes effect after being soaked in bitumen; it is used in many fields, such as waterproof bitumen membrane,
Underground engineering, bridge surface, water tank waterproofing and building foundation anticorrosion materials.
【Characteristics】
High tensile strength and very good elongation
Good penetration by bitumen
Anti-corrosion
Anti-aging
User and environment friendly.
To be used as substrate material of waterproofing bitumen membrane.
To wrap the pipe lines.
To be used as paving mat to reinforce, waterproofing and anti crack of the high way, airport runway and so on.
To be used as substrate material of waterproofing bitumen membrane.
To wrap the pipe lines.
To be used as paving mat to reinforce, waterproofing and anti crack of the high way, airport runway and so on.
Item | Unit weight | Roll Width | Tensile strength MD | Tensile strength CD | Elongation At Max. Tensile strength | Free load shrinkage at 200℃ | Mositure content | Loading quantity |
g/m2 | MM | N/5CM | N/5CM | N/5CM | % | % | Rolls/40’GP | |
PM140-F | 140 | 1020 | ≥200 | ≥150 | 15 | ≤2 | ≤2 | 44 |
PM160-F | 160 | 1020 | ≥250 | ≥200 | 15 | ≤2 | ≤2 | 44 |
PM180-F | 180 | 1020 | ≥300 | ≥250 | 20 | ≤2 | ≤2 | 44 |
PM200-F | 200 | 1020 | ≥350 | ≥350 | 20 | ≤2 | ≤2 | 44 |
PM220-F | 220 | 1020 | ≥400 | ≥400 | 25 | ≤2 | ≤2 | 44 |
PM230-F | 230 | 1020 | ≥450 | ≥400 | 30 | ≤2 | ≤2 | 44 |
PM250-F | 250 | 1020 | ≥500 | ≥500 | 30 | ≤2 | ≤2 | 44 |
【Customization】
Staple Polyester Mat in above table are the standard types Nanjing EFG CO., LTD is delivering to customers, if customer wants specific unit weight, tensile strength, roll width and roll length, Nanjing EFG CO., LTD can produce as per customer’s requirement, offer tailored service to customers from different countries.
【Packaging】
1. Roll packaging: PE plastic film
2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.
Item | Unit weight | Roll Width | Tensile strength MD | Tensile strength CD | Elongation At Max. Tensile strength | Free load shrinkage at 200℃ | Mositure content | Loading quantity |
g/m2 | MM | N/5CM | N/5CM | N/5CM | % | % | Rolls/40’GP | |
PM140-F | 140 | 1020 | ≥200 | ≥150 | 15 | ≤2 | ≤2 | 44 |
PM160-F | 160 | 1020 | ≥250 | ≥200 | 15 | ≤2 | ≤2 | 44 |
PM180-F | 180 | 1020 | ≥300 | ≥250 | 20 | ≤2 | ≤2 | 44 |
PM200-F | 200 | 1020 | ≥350 | ≥350 | 20 | ≤2 | ≤2 | 44 |
PM220-F | 220 | 1020 | ≥400 | ≥400 | 25 | ≤2 | ≤2 | 44 |
PM230-F | 230 | 1020 | ≥450 | ≥400 | 30 | ≤2 | ≤2 | 44 |
PM250-F | 250 | 1020 | ≥500 | ≥500 | 30 | ≤2 | ≤2 | 44 |
【Customization】
Staple Polyester Mat in above table are the standard types Nanjing EFG CO., LTD is delivering to customers, if customer wants specific unit weight, tensile strength, roll width and roll length, Nanjing EFG CO., LTD can produce as per customer’s requirement, offer tailored service to customers from different countries.
【Packaging】
1. Roll packaging: PE plastic film
2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.
