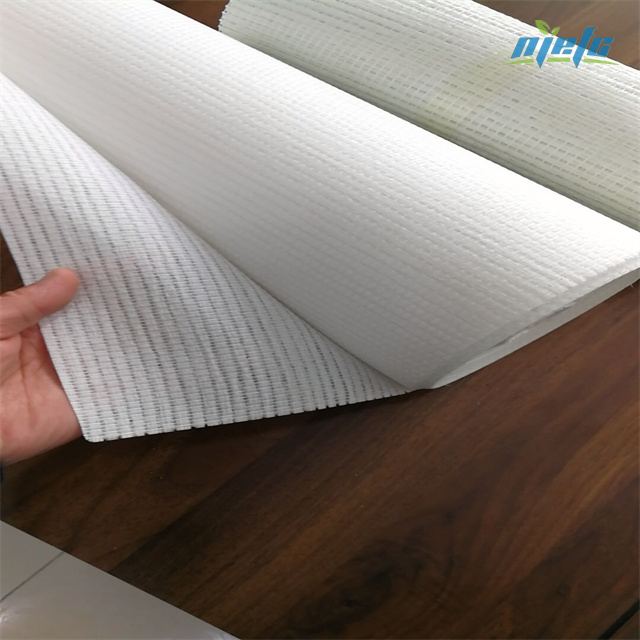

Texturized fabric is plain weaved fabric, which is used for reinforcement of bituminous waterproofing membranes. The material on cross direction use texturized glassfiber 320tex or 640tex, and the materia on machinery direction is 75 tex fiberglass yarn. The material used and the structure of the fabric bring excellent features to the fabric. The plain weave structure gives the fabric excellent tensile strength and dimensional stability. The texturized glass fiber gives the features of easy soakage and impregnation o compound. The plain weave structure avoid the possibility of delamination of the bituminous membrane
Being using as excellent reinforcement material of bituminous waterproofing membranes the texturized fabric can also be used as pipe wrap material and reinforce material of marbles and gypsum board.
Texturized fabric is plain weaved fabric, which is used for reinforcement of bituminous waterproofing membranes. The material on cross direction use texturized glassfiber 320tex or 640tex, and the materia on machinery direction is 75 tex fiberglass yarn. The material used and the structure of the fabric bring excellent features to the fabric. The plain weave structure gives the fabric excellent tensile strength and dimensional stability. The texturized glass fiber gives the features of easy soakage and impregnation o compound. The plain weave structure avoid the possibility of delamination of the bituminous membrane
Being using as excellent reinforcement material of bituminous waterproofing membranes the texturized fabric can also be used as pipe wrap material and reinforce material of marbles and gypsum board.
Being using as excellent reinforcement material of bituminous waterproofing membranes the texturized fabric can also be used as pipe wrap material and reinforce material of marbles and gypsum board.
Being using as excellent reinforcement material of bituminous waterproofing membranes the texturized fabric can also be used as pipe wrap material and reinforce material of marbles and gypsum board.
Items
Unit
F-PT-160
F-PT-190
Warp
Weft
Warp
Weft
Material Used
tex
75
320
75
650
Setting
Per 100mm
50
24
50
18
Width
cm
100
100
Roll length
m
2500
2100
Area weight
G/m2
160±8
190±10
Binder content
%
20±3
20±3
Tensile strength MD
N/5cm
1000
1000
Tensile strength CD
N/5cm
1000
1300
Thickness
mm
0.4
0.56
Moisture
%
0.4
0.4
【Packaging】
Standard export packing for shipping.
1. Roll packaging: PE plastic film
2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.
Pallet is free of fumigation, fumigation certificate is available
Items
Unit
F-PT-160
F-PT-190
Warp
Weft
Warp
Weft
Material Used
tex
75
320
75
650
Setting
Per 100mm
50
24
50
18
Width
cm
100
100
Roll length
m
2500
2100
Area weight
G/m2
160±8
190±10
Binder content
%
20±3
20±3
Tensile strength MD
N/5cm
1000
1000
Tensile strength CD
N/5cm
1000
1300
Thickness
mm
0.4
0.56
Moisture
%
0.4
0.4
【Packaging】
Standard export packing for shipping.
1. Roll packaging: PE plastic film
2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.
Pallet is free of fumigation, fumigation certificate is available
