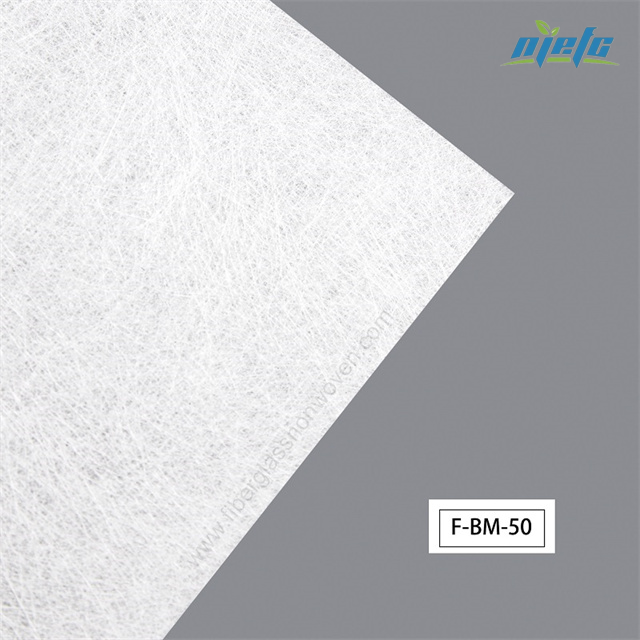

Fiberglass veil is produced from chopped glass fiber with fiber length 6mm till 12mm and fiber diameter 9 micron till 13 micron. Uniformed dispersed glass fiber form a even surface of the veil, this features make the fiberglass veil be suitable for the surface treatment of
Fiberglass reinforced plastic (FRP) products, to make the FRP surface be smooth and even. The fiberglass veil is suitable for saturated polyester resin, epoxy resin and phenolic resin. According to the different producing process of the FRP products, the fiberglass veil is tailored into two series including winding series and protrusion series. The client can choose different fiberglass veil according to the producing process of their FRP products.
Fiberglass veil is produced from chopped glass fiber with fiber length 6mm till 12mm and fiber diameter 9 micron till 13 micron. Uniformed dispersed glass fiber form a even surface of the veil, this features make the fiberglass veil be suitable for the surface treatment of
Fiberglass reinforced plastic (FRP) products, to make the FRP surface be smooth and even. The fiberglass veil is suitable for saturated polyester resin, epoxy resin and phenolic resin. According to the different producing process of the FRP products, the fiberglass veil is tailored into two series including winding series and protrusion series. The client can choose different fiberglass veil according to the producing process of their FRP products.
Uniformly Dispersed Fiber
Even and Soft Surface
Easy apply to the resin
Excellent molding property
Uniformly Dispersed Fiber
Even and Soft Surface
Easy apply to the resin
Excellent molding property
Product code | Unit Weight | LOI | MD Tensile Strength | Moisture Content | Penetrating time |
g/m2 | % | N/5CM | % | S | |
F-BM-30H | 30 | ≤10 | ≥30 | ≤0.5 | ≤10(Two layers) |
F-BM-50H | 50 | ≤10 | ≥45 | ≤0.5 | ≤15(Two layers) |
F-BM-30W | 30 | ≤10 | ≥30 | ≤0.5 | ≤10(Two layers) |
F-BM-50W | 50 | ≤10 | ≥55 | ≤0.5 | ≤15(Two layers) |
F-BM-100W | 100 | ≤10 | ≥190 | ≤0.5 | ≤15(One layer) |
F-BM-60P | 60 | ≤20 | ≥110 | ≤0.5 | —— |
F-BM-90P | 90 | ≤15 | ≥125 | ≤0.5 | —— |
F-BM-100P | 100 | ≤15 | ≥190 | ≤0.5 | —— |
Testing Basis | ISO3374 | ISO 1887 | ISO3342 | ISO 3344 | EN 14118 |
Paper core diameter: 76/152mm |
Remark: 1. Other specification can be customized according to customer’s demand.
The technical data above is for reference only.
Product code | Unit Weight | LOI | MD Tensile Strength | Moisture Content | Penetrating time |
g/m2 | % | N/5CM | % | S | |
F-BM-30H | 30 | ≤10 | ≥30 | ≤0.5 | ≤10(Two layers) |
F-BM-50H | 50 | ≤10 | ≥45 | ≤0.5 | ≤15(Two layers) |
F-BM-30W | 30 | ≤10 | ≥30 | ≤0.5 | ≤10(Two layers) |
F-BM-50W | 50 | ≤10 | ≥55 | ≤0.5 | ≤15(Two layers) |
F-BM-100W | 100 | ≤10 | ≥190 | ≤0.5 | ≤15(One layer) |
F-BM-60P | 60 | ≤20 | ≥110 | ≤0.5 | —— |
F-BM-90P | 90 | ≤15 | ≥125 | ≤0.5 | —— |
F-BM-100P | 100 | ≤15 | ≥190 | ≤0.5 | —— |
Testing Basis | ISO3374 | ISO 1887 | ISO3342 | ISO 3344 | EN 14118 |
Paper core diameter: 76/152mm |
Remark: 1. Other specification can be customized according to customer’s demand.
The technical data above is for reference only.
Every roll in plastic film without pallet.
Every roll in plastic film without pallet.
This product should be stored in a dry, ventilated, and rainproof place, with temperatures from 5ºCto 35ºC and humidity between 35% and 65%. It is recommended to be kept in the intact package when not used to avoid damp.
This product should be stored in a dry, ventilated, and rainproof place, with temperatures from 5ºCto 35ºC and humidity between 35% and 65%. It is recommended to be kept in the intact package when not used to avoid damp.
